Outputs

Outputs are used to display content to the screen. Outputs can have their own personalized Layouts. You can display the same content on different screens, but have different styling for it. Sky is the limit.

Quick start

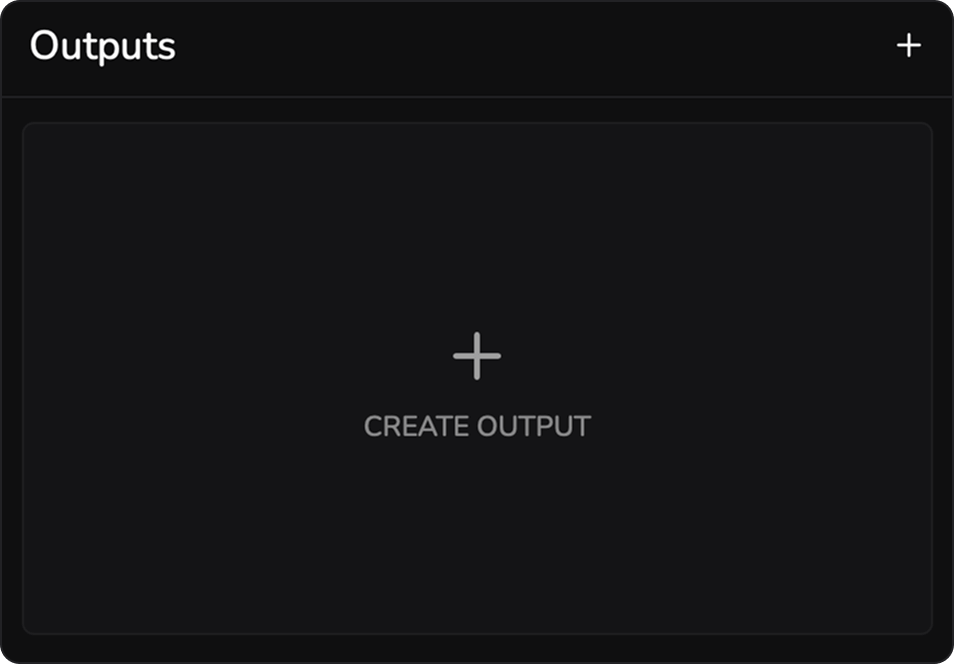

Upon initial installation, the app loads without any outputs. Users are informed with a large button that it is required to Create Output.

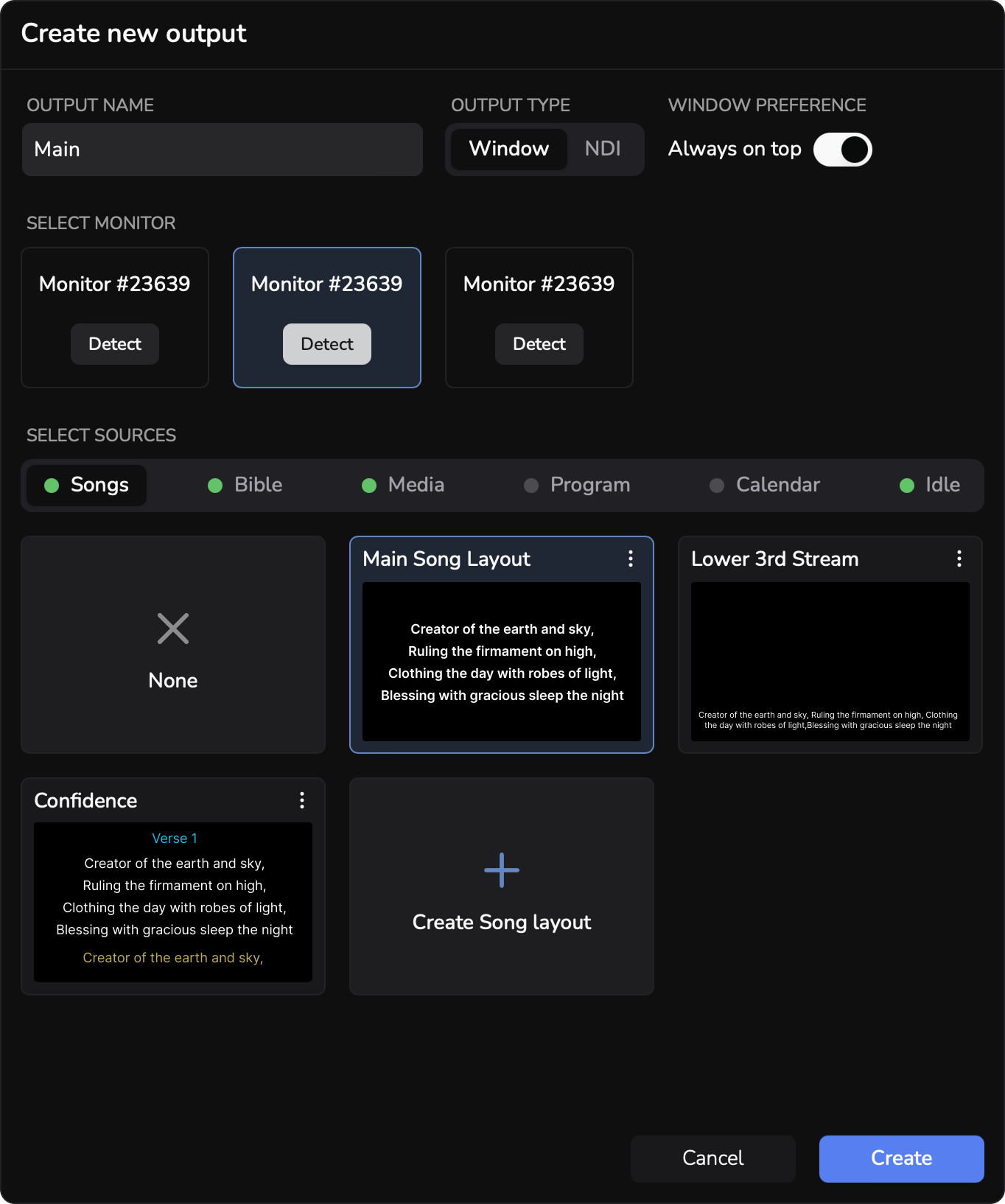

When prompted with a pop-up modal, these are required steps:

Name the output
Select destination: Monitor/Window or NDI
Decide if the output window should be always on top or not
Select the screen where the Output will render to
Select one or more Sources from which this Output will receive data: Songs, Bible, Media, Program, Calendar, or Idle
Attach a desired Layout to each source, data received from that Source will be displayed based the selected Layout configurations

*Layout previews are under development and are coming soon.

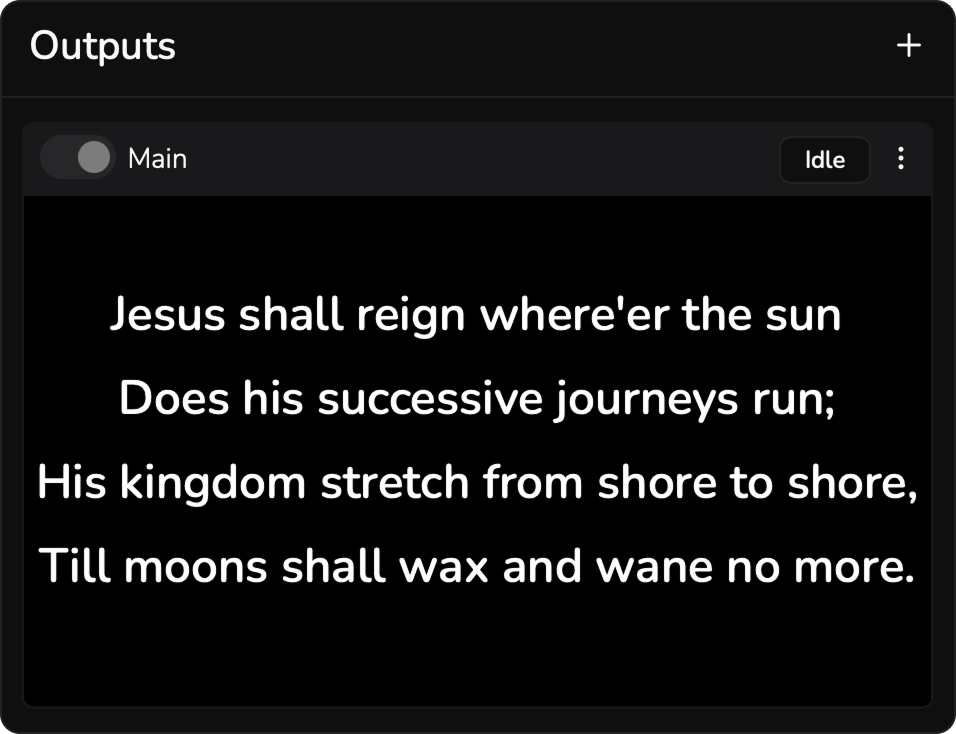

Single Output Preview

By default, when the first output is created, it will take all available space.

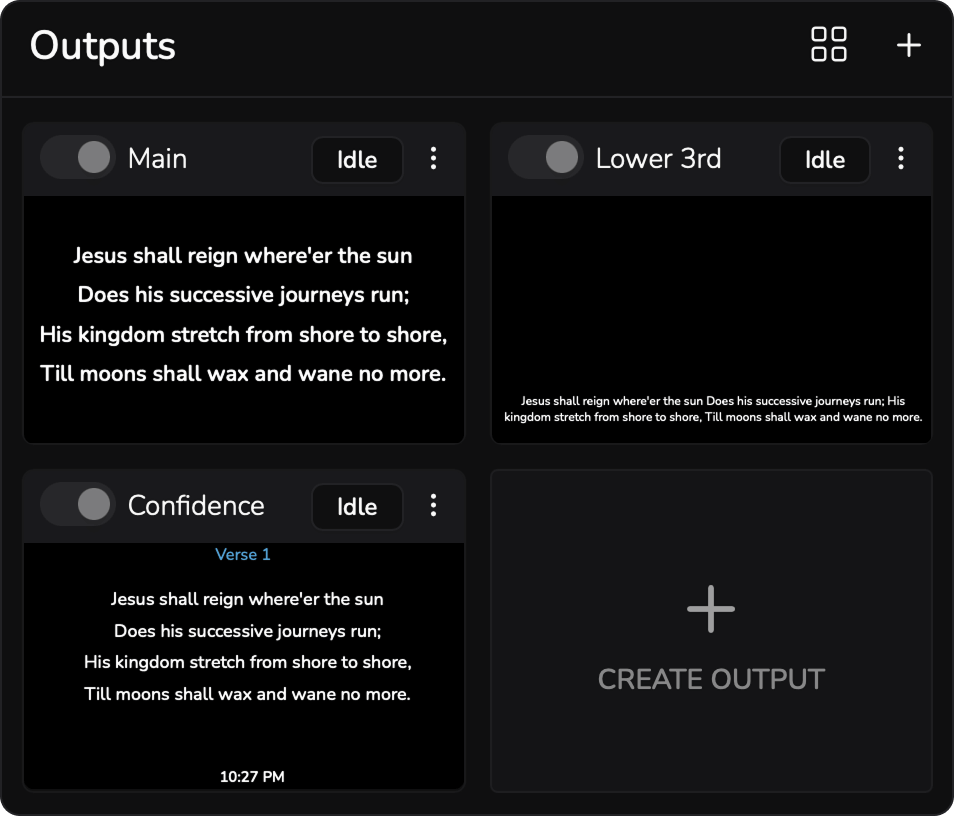

Multiple Outputs Preview

When two or more outputs are created, you can toggle between single and multiple outputs preview by clicking on the "grid icon" on top or on the preview itself. Each Output can be enabled, disabled, and switched to Idle, which will stream Idle layout if configured, otherwise, it will send an empty signal to the Output, effectively "blacking" it out.
